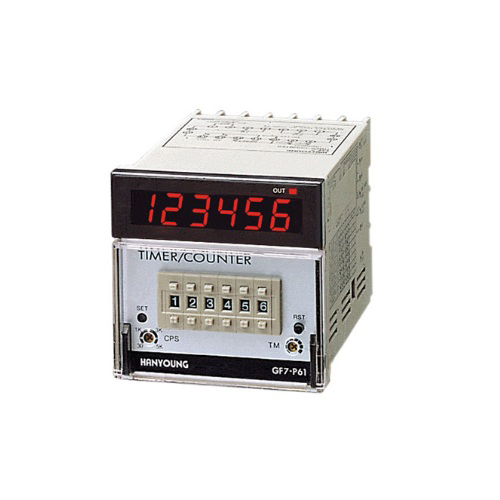

GF7-P41E

Description

GF7-P41E

Dimensión: 72 X 72 X 112 mm (Ancho X Alto X Profundidad)

Dígitos: 4 dígitos o 6 dígitos

Preset stages: Single stage

Function: 30 cps, 1k cps, 3k cps, 5K cps Select by using  the volume (Located on the front panel)

                Input signal levels : [High] 5 to 30 Vd.c [Low] 0 to 2 Vd.c

Input action: UP, DOWN, UP/DOWN (Selectable by the dip switch)

Output action: N, F, C, R, K, P, Q, A (Selectable by the dip switch)

                        With the totalizing counter, it is displayed as F, K output mode

Prescale: Applicable only preset counter, 0.001 ~ 9999 (4 digits), 0.00001 ~ 999999 (6 digits)

Timer range: 4 digits : 99.99s, 999.9s, 9999s, 99m59s, 999.9m, 99h59m, 999.9h, 9999 h

                      6 digits : 99999.9s, 999999s, 99m59.99s, 999m59.9s, 99999.9m, 99h59m59s, 9999h59m, 99999.9h

Power Supply voltage: 100-240 Va.c , 50-60 Hz (voltage fluctuation: ± 10% of the power supply voltage)

External power supply: 12 Vd.c 100 mA max

Control output: Contact; 250 V 3A (Resistive load), (Out 1 / out 2: Form C)

                           Solid state; 30 V 100 mA max (Open collector)

Type: Pre-set counter

Displayable digits: 4 Digits (9999)

Setting stage: 2nd stage setting

Pre-scale function: Pre-scale function built in (Preset counter)
